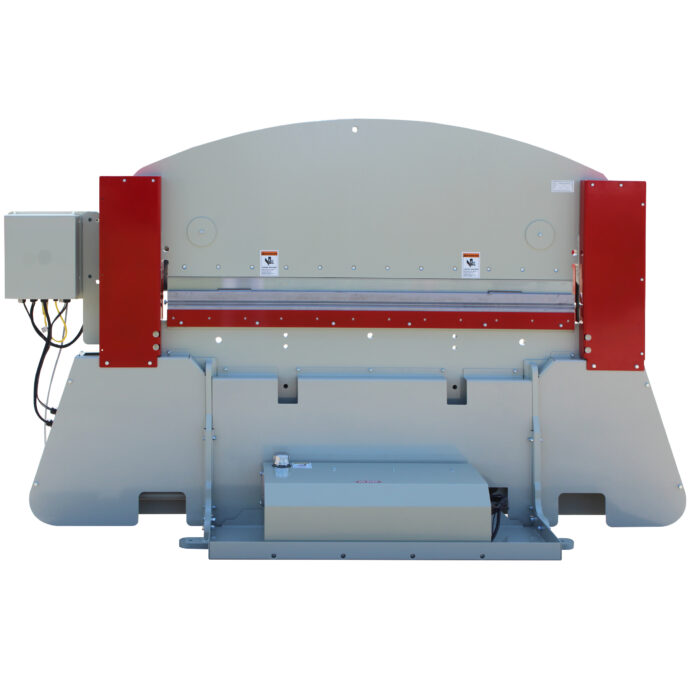

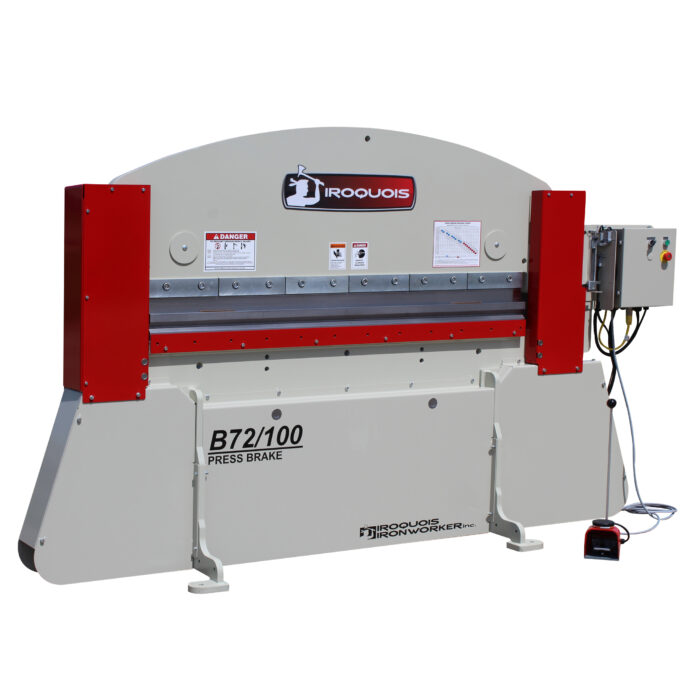

B72/100 Press Brake


Brake is rated to bend six feet of 3/16″ mild steel in a 2″ die opening. Brake comes with fast two stage hydraulic system and is available with single or three phase motor options. Complete, heavy duty frame is cut from one solid plate with no welds or seams. All pivot points have easily replaceable parts, bushings, or bearings. Brake comes standard with a easy to use limit switch control (More Information). This control package is a perfect choice for custom fabricators, short run production, or dedicated bending jobs.  Touch screen CNC control, backgauge, die, and many other options also available.

Available for single-phase or three-phase power supply.

Proudly made in the USA!


Check the boxes below to add products to your quote cart.
Click on the options for more information.

Optional Accessories (Sold individually)

More tooling

Product price:
Additional options total:
Order total:


B72/100 Press Brake



74” Open Width
11.75″ Open Height
5” Vertical Travel
Hydro Mechanical Action
Tonnage variable from 70 Tons top of stroke to 100 Tons on lower end
Standard Limit Switch/Foot Pedal Control
Cantilever Adjustment
4.25″ Die Table
All replaceable bushings and wear parts
Two stage Hydraulic Pump
5 HP, Single or Three phase (your choice)
Footprint – 122”W X 43.5”D
Height – 78”
