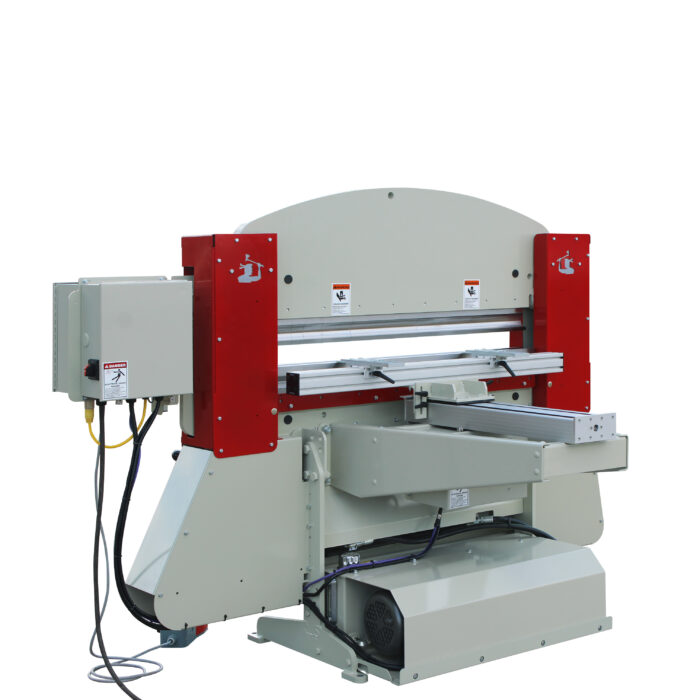

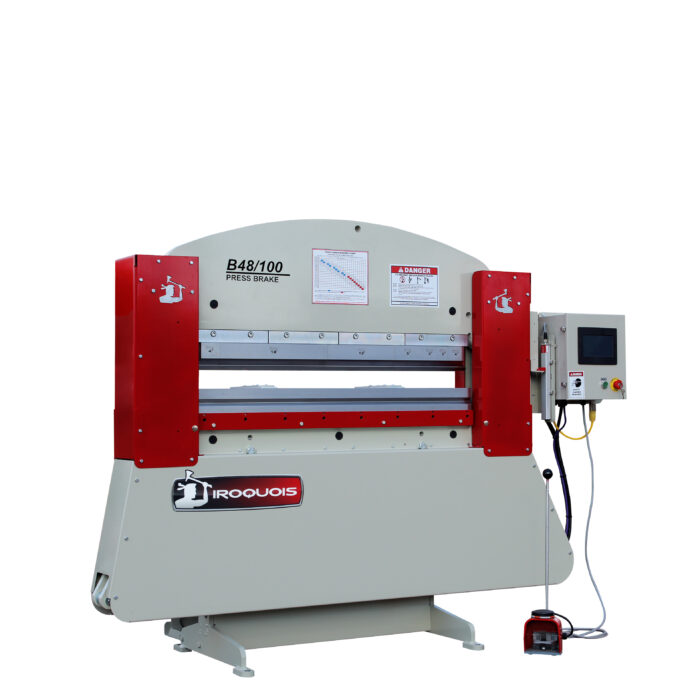

B48/100 Press Brake

$16,987.00

Brake is rated for bending four feet of 1/4″ mild steel in a 2″ die, or four feet of 5/16″ in a 3″ die. Brake comes with a fast two speed hydraulic system and is available with single or three phase motor options. Brake comes standard with a easy to use limit switch control (More Information). This control package is a perfect choice for custom fabricators, short run production, or dedicated bending jobs. Touch screen production control package also available. Proudly made in the USA!



Check the boxes below to add products to your quote cart.
Click on the options for more information.

Optional Accessories (Sold individually)

Common Die Set

+ $445.00
+ $1,710.00

More tooling

Product price:
Additional options total:
Order total:

Description

B48/100 Press Brake

EFFECTIVE CONTROL

The machine comes standard with the basic and dependable limit switch control More Information. This control allows you to: adjust the stroke of the machine, change the speed, and set top and bottom limits. Or you can choose the Touch Screen NC control, which has more capability.

POWER SUPPLY

Single or Three Phase Power Supply. Most foreign made products don’t offer this, but we give you the freedom to choose your preference. This is huge. Stick with USA!

REACTIVE PUMP

The hydraulic system is designed with two speed pump which approaches the work at full speed and shifts down under load reducing horsepower requirements.

DESIGN

The unique closed-end design makes these machines compact and efficient. The machine uses a mechanical linkage to multiply the power of the cylinder on the bottom of the machine.

MANY OPTIONS

You have MANY accessories to choose from that will help you create the perfect machine for most all of your complicated or simple needs. From safety options like light curtains, and palm controls; to backguages and tooling options… We’ve go you covered. Ask Us!

READY TO GO

We deliver your new Iroquois power-horse in a well-built crate or wrapped and skidded. Your new machine arrives fully lubed and filled with hydraulic oil. All you’ll need to do is unwrap it, connect the wiring, plug it in, and get to work.

IRON-CLAD WARRANTY

There’s no need to worry if an occasional defect is uncovered. That’s really rare, but if it does happen you’re covered with a comprehensive TWO YEAR Warranty for repair and/or replacement on all material and workmanship. Our frames are built tough. So tough in fact that we provide you with a full FIVE YEAR Warranty on all material and workmanship related to the frame. We don’t just say it, we back up our confidence in all our Iroquois products with an iron-clad written warranty

SPECIFICATIONS

Tons 100
Open Width 50″
Open Hieght 10.75″
Stroke 4″
Motor 5 hp
Footprint 36″ x 90″
Hieght 65″
Weight 2,800 lbs (approx)
