SPP40/75 Ironworker

$18,997.00

The SPP40/75 Ironworker is sold as a complete package that includes:

75 ton punch
40 ton press
Flat bar shear
Angle shear
5 piece punch set
A set of press blocks
3″ ram extension
Notcher station (notchers purchased separately).





This package has everything you need to get started. You can customize your machine by adding additional accessories to your quote below.

Product price:
Additional options total:
Order total:

Description

SPP40/75 Ironworker

EFFECTIVE CONTROL

The convenient and easy-to-use feather-able hand control valve has been carefully optimized for your custom projects and press work. (Production control is available for you as an option).

POWER SUPPLY

Single or Three Phase Power Supply. Most foreign made products don’t offer this, but we give you the freedom to choose your preference. This is huge. Stick with USA!

REACTIVE PUMP

The hydraulic system is designed with two speed pump which approaches the work at full speed and shifts down under load reducing horsepower requirements.

SOLID FRAME

Meticulously engineered to reduce weight and increase strength. Main Frame members are built with solid plate steel

MANY OPTIONS

You have MANY accessories to choose from that will help you create the perfect machine for most all of your complicated or simple needs. Ask Us!

READY TO GO

We deliver your new Iroquois power-horse in a well-built crate or wrapped and skidded. Your new machine arrives fully lubed and filled with hydraulic oil. All you’ll need to do is unwrap it, connect the wiring, plug it in, and get to work.

IRON-CLAD WARRANTY

There’s no need to worry if an occasional defect is uncovered. That’s really rare, but if it does happen you’re covered with a comprehensive ONE YEAR Warranty for repair and/or replacement on all material and workmanship. Our frames are built tough. So tough in fact that we provide you with a full TWO YEAR Warranty on all material and workmanship related to the frame. We don’t just say it, we back up our confidence in all our Iroquois products with an iron-clad written warranty



SPECIFICATIONS

40 Ton “H” Style Press32″ Wide

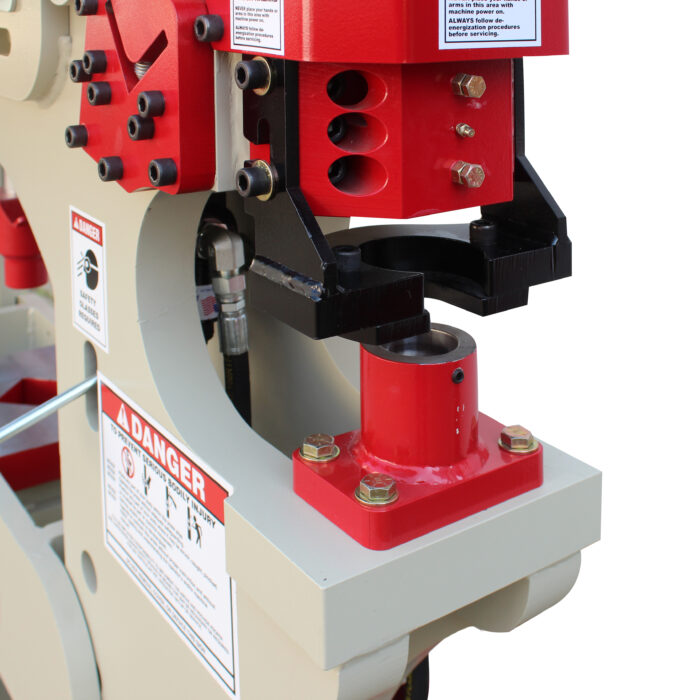

75 Ton Punch1 1/8” in 3/4” – 8″ Punch Throat

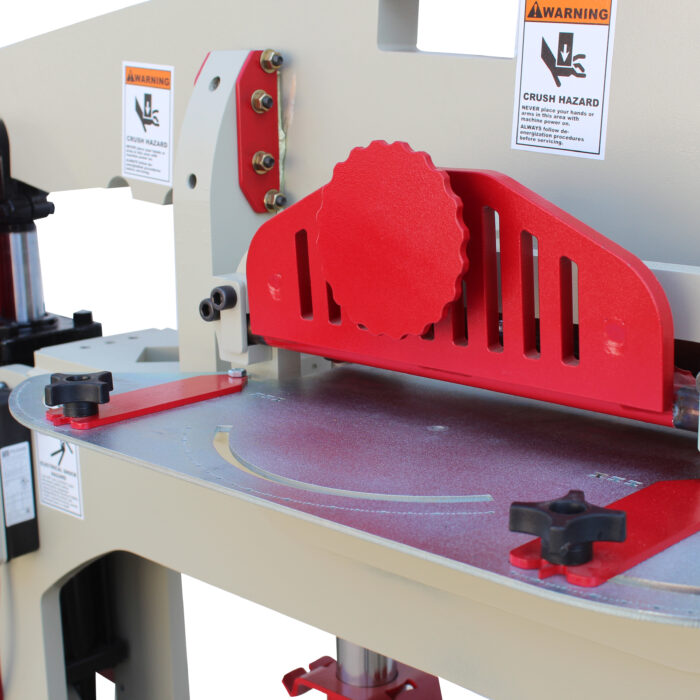

14″ Plate Shear1” x 6” – 3/4” x 10” – 1/2” x 14”
Angle Shear3″x 3″x 3/8″
Notcher Station20 Ton
Hydraulics2250 PSI – 2 Stage, 11 GPM Pump
Motor5 HP
Electrical1Φ 230V / 3Φ 208-230V / 3Φ 460V (your choice)
Dimensions26″L x 61″W x 63″H
Weight2260 LB (approx.)
