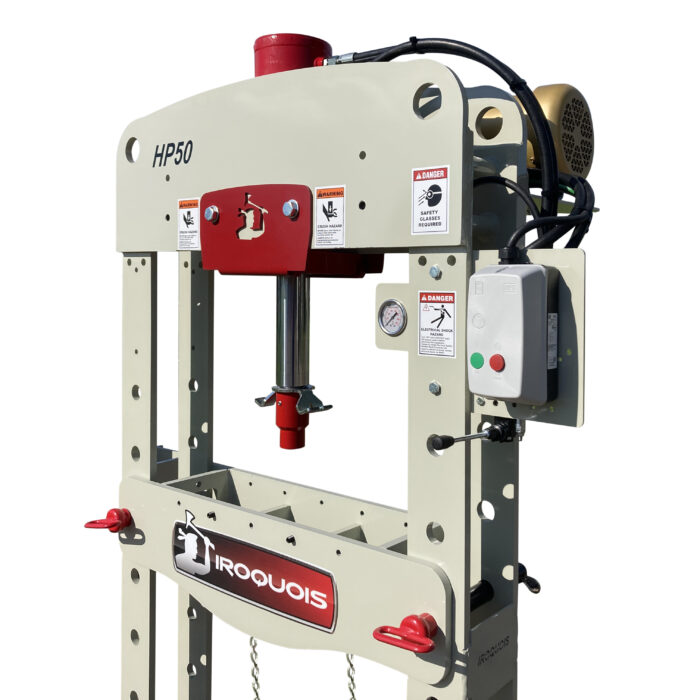

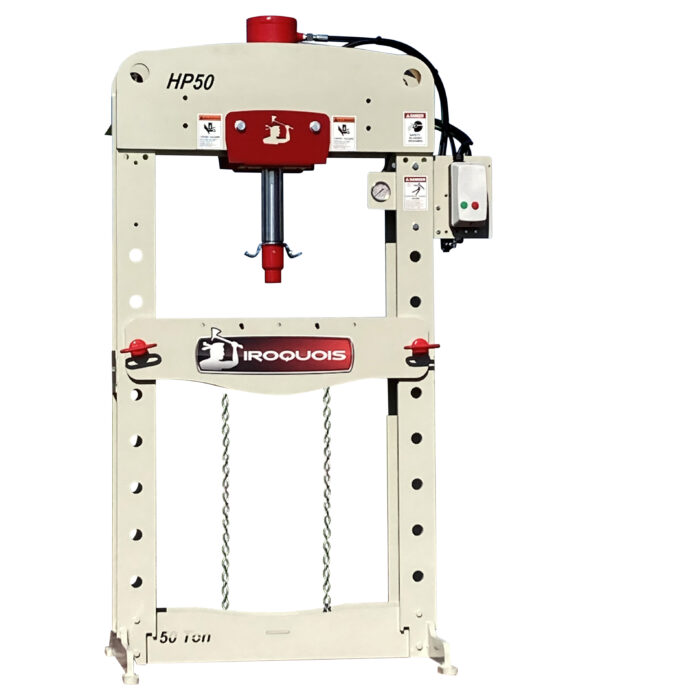

HP50 Hydraulic Press

$5,950.00

The Iroquois HP50 is sold as a complete package that inlcludes

50 Ton “H” Frame Style Press
Press Blocks & Press Ram Cap
Pressure Gauge
Two Stage Hydraulic Pump
20 ft. Cord & Nema 5-20 Plug
2 Year Warranty



Check the boxes below to add products to your quote cart.
Click on the options for more information.

Choose Bed Width

Customize your HP50

Customize your HP50

Customize your HP50

Product price:
Additional options total:
Order total:
Category:

Description

HP50 Hydraulic Press

EFFECTIVE CONTROL

The convenient and easy-to-use feather-able hand control valve has been carefully optimized for your custom projects and press work. (Production control is available for you as an option).

POWER SUPPLY

Single or Three Phase Power Supply. Most foreign made products don’t offer this, but we give you the freedom to choose your preference. This is huge. Stick with USA!

REACTIVE PUMP

The hydraulic system is designed with two speed pump which approaches the work at full speed and shifts down under load reducing horsepower requirements.

SOLID FRAME

While most of our competitors use structural channel or I-beams, We build our frames out of solid plate steel. The result is a sturdy dependable press that will take everything you can throw at it.

CUSTOMIZE YOUR HP50

We want you to get the right machine for the right job. We not only let you choose the bed width and power supply, we let you add the 14 ton Side Press or the Hydraulic Sliding Ram  option and even upgrade the horsepower! You also have MANY accessories to choose from that will help you create the perfect machine for most all of your complicated or simple needs. Ask Us!

READY TO GO

We deliver your new Iroquois power-horse in a well-built crate or wrapped and skidded. Your new machine arrives fully lubed and filled with hydraulic oil. All you’ll need to do is unwrap it, connect the wiring, plug it in, and get to work.

IRON-CLAD WARRANTY

There’s no need to worry if an occasional defect is uncovered. That’s really rare, but if it does happen you’re covered with a comprehensive TWO YEAR Warranty for repair and/or replacement on all material and workmanship. Our frames are built tough. So tough in fact that we provide you with a full FIVE YEAR Warranty on all material and workmanship related to the frame. We don’t just say it, we back up our confidence in all our Iroquois products with an iron-clad written warranty

Specifications

Tonnage 50 T
Ram Travel 12″
Max Open Height 44″
Pump 3.5 gpm, 2 stage (larger pump units available)
Motor 1.5 hp, 120 V
Calculated Speed Extend 24.3ipm [no load] Retract 32.5ipm
Hydraulic Pressure 3,600 psi
Cord 20′, Nema 5-20 plug
Dimensions 34″ x 42.25″ x 83.25″
